arg_parse.c File Reference

Command line option parser. More...

#include <core/arg_parse.h>
#include <mm/mm.h>
#include <ctype.h>
#include <stdarg.h>
#include <stdio.h>
#include <string.h>

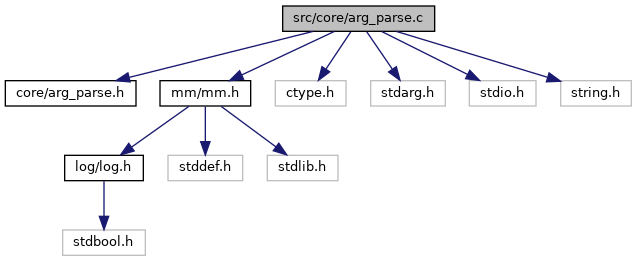

Include dependency graph for arg_parse.c:

Go to the source code of this file.

Macros
#define	SCREEN_LENGTH   80
	Expected length of the terminal expressed in monospace characters width.
#define	HELP_INDENT   6
	Number of spaces to indent the --help entries.
#define	HELP_OPT_LEN_MIN   20
	Minimum indentation of the documentation strings in the --help entries.
#define	HELP_OPT_LEN_MAX   26
	Maximum indentation of the documentation strings in the --help entries.
#define	HELP_SPACES_MIN   3
	Minimum spaces between the option and its documentation in the --help text.
#define	USAGE_INDENT   11
	Number of spaces to indent the --usage text.

Enumerations
enum	internal_opt_key { AP_HELP = AP_KEY_FINI + 1, AP_USAGE, AP_VERSION }
	The keys used in the internal struct ap_option to handle base options. More...

Functions
static int	cmp_opts (const void *a, const void *b)
	Compares two ap_option structs alphabetically. More...
static int	cmp_sects (const void *a, const void *b)
	Compares two ap_section structs (used to reorder sections alphabetically) More...
static void	print_indented_string (const char *str, int curr_i, int indent)
	Prints a string in the terminal indenting it and wrapping it. More...
static void	print_help_option (const char *name, const char *arg, const char *doc)
	Prints the help text for a single option. More...
static void	print_help (void)
	Prints the help text for the whole argument parsing context.
static int	print_usage_option (const char *name, const char *arg, int curr_i)
	Prints the help text for a single option. More...
static void	print_usage (void)
	Prints the usage text for the whole argument parsing context.
static void	internal_opt_parse (int key, const char *arg)
	The parsing function for the internal options (–help, –usage, –version) More...
static void	sort_and_setup_settings (void)
	Sets up the ap_section structs and their ap_option structs by sorting them. The internal ap_section struct is also injected.
static void	undo_setup_settings (void)
	Undos the injection of the internal ap_section struct.
static int	parse_option (struct ap_section *s, struct ap_option *o, const char *arg, bool arg_explicit)
	Parses a single option by calling the appropriate parser or throwing an error. More...
static int	process_option (const char *o_name, const char *arg)
	Parses a single option by calling the appropriate parser or throwing an error. More...
void	arg_parse_run (struct ap_settings *ap_s, char **argv)
	Parses the command line options. More...
const char *	arg_parse_program_name (void)
	Gets the program name. More...
void	arg_parse_error (const char *fmt,...)
	Prints a parsing related error message and exits with a bad exit code. More...

Variables
static const char *	ap_pname
	The program name extracted from the command line.
static const struct ap_settings *	ap_settings
	The currently parsed struct ap_settings.
static struct ap_option	ap_internal_opts []
	The internal struct ap_option used to handle base options. More...

Detailed Description

Command line option parser.

A command line option parser mimicking a subset of GNU argp features.

Copyright

Copyright (C) 2008-2021 HPDCS Group https://hpdcs.github.io

Definition in file arg_parse.c.

Enumeration Type Documentation

internal_opt_key

enum internal_opt_key

The keys used in the internal struct ap_option to handle base options.

Enumerator
AP_HELP	Identifies the --help option.
AP_USAGE	Identifies the --usage option.
AP_VERSION	Identifies the --version option.

Definition at line 39 of file arg_parse.c.

Function Documentation

arg_parse_error()

void arg_parse_error	(	const char *	fmt,
			...
	)

Prints a parsing related error message and exits with a bad exit code.

Parameters

fmt	the printf-style format string
...	the arguments required to fill in the format string

Definition at line 432 of file arg_parse.c.

Here is the caller graph for this function:

arg_parse_program_name()

const char* arg_parse_program_name

(

void

)

Gets the program name.

Returns

a C string containing the program name, or NULL if arg_parse_run hasn't been called yet.

Definition at line 422 of file arg_parse.c.

arg_parse_run()

void arg_parse_run	(	struct ap_settings *	ap_s,
		char **	argv
	)

Parses the command line options.

Parameters

ap_s	the parsing settings (see struct ap_settings for more info)
argv	the NULL terminated array of C strings from the command line

Definition at line 382 of file arg_parse.c.

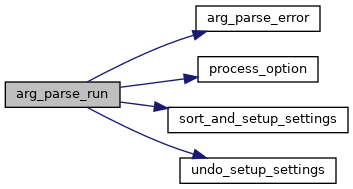

Here is the call graph for this function:

Here is the caller graph for this function:

cmp_opts()

static int cmp_opts ( const void *  a, const void *  b  )

static

Compares two ap_option structs alphabetically.

Parameters

a	the first ap_option to compare
b	the second ap_option to compare

Returns

a positive or negative value if a is respectively before or after b, 0 otherwise (should never happen with correct options specifications)

Definition at line 63 of file arg_parse.c.

cmp_sects()

static int cmp_sects ( const void *  a, const void *  b  )

static

Compares two ap_section structs (used to reorder sections alphabetically)

Parameters

a	the first ap_section to compare
b	the second ap_section to compare

Returns

a positive or negative value if a must be considered respectively before or after b, 0 otherwise

Definition at line 76 of file arg_parse.c.

internal_opt_parse()

static void internal_opt_parse ( int  key, const char *  arg  )

static

The parsing function for the internal options (–help, –usage, –version)

Parameters

key	the currently parsed key
arg	the currently parsed argument

Definition at line 233 of file arg_parse.c.

parse_option()

static int parse_option ( struct ap_section *  s, struct ap_option *  o, const char *  arg, bool  arg_explicit  )

static

Parses a single option by calling the appropriate parser or throwing an error.

Parameters

s	the section of the option currently parsed
o	the option currently parsed
arg	the argument associated with the option (can be NULL)
arg_explicit	a flag indicating if the argument has been supplied explicitly (with an option formatted as –option=value)

Returns

1 if a non explicit argument has been consumed during parsing, 0 otherwise

Definition at line 306 of file arg_parse.c.

print_help_option()

static void print_help_option ( const char *  name, const char *  arg, const char *  doc  )

static

Prints the help text for a single option.

Parameters

name	the name of the option
arg	the documentation for the argument (if present, else NULL)
doc	the documentation for the option (if present, else NULL)

Definition at line 131 of file arg_parse.c.

Here is the caller graph for this function:

print_indented_string()

static void print_indented_string ( const char *  str, int  curr_i, int  indent  )

static

Prints a string in the terminal indenting it and wrapping it.

Parameters

str	the string to print
curr_i	the number of characters already present in the current line of the terminal
indent	the desired indentation level for the string express in number of spaces

Definition at line 95 of file arg_parse.c.

print_usage_option()

static int print_usage_option ( const char *  name, const char *  arg, int  curr_i  )

static

Prints the help text for a single option.

Parameters

name	the name of the option
arg	the documentation for the argument (if present, else NULL)
curr_i	the number of characters already present in the current line of the terminal

Definition at line 188 of file arg_parse.c.

Here is the caller graph for this function:

process_option()

static int process_option ( const char *  o_name, const char *  arg  )

static

Parses a single option by calling the appropriate parser or throwing an error.

Parameters

o_name	the option currently parsed
arg	the argument associated with the option (can be NULL)

Returns

1 if the argument has been consumed during parsing, 0 otherwise

Definition at line 334 of file arg_parse.c.

Here is the caller graph for this function:

Variable Documentation

ap_internal_opts

struct ap_option ap_internal_opts[]

static

Initial value:

= {
        {"help", AP_HELP, NULL, "Give this help list"},
        {"usage", AP_USAGE, NULL, "Give a short usage message"},
        {"version", AP_VERSION, NULL, "Print program version"},
        {0}
}

The internal struct ap_option used to handle base options.

Definition at line 49 of file arg_parse.c.
