Core ROOT-Sim functionalities. More...

#include <log/log.h>
#include <mm/mm.h>
#include <float.h>
#include <limits.h>
#include <stdbool.h>
#include <stdint.h>

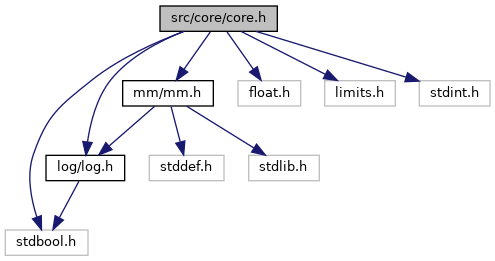

Include dependency graph for core.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	max(a, b)

#define	min(a, b)

#define	CACHE_LINE_SIZE 128
	The size of a cpu cache line. More...

#define	likely(exp) __builtin_expect(!!(exp), 1)
	Optimize the branch as likely taken.

#define	unlikely(exp) __builtin_expect((exp), 0)
	Optimize the branch as likely not taken.

#define	SIMTIME_MAX DBL_MAX
	The maximum value of the logical simulation time, semantically never.

#define	MAX_NODES (1 << 16)
	The maximum number of supported MPI nodes. More...

#define	MAX_THREADS (1 << 10)
	The maximum number of supported threads. More...

#define	lid_to_nid(lid) (nid_t)(lid / n_lps_node)

Typedefs
typedef double	simtime_t
	The type used to represent logical time in the simulation.

typedef uint64_t	lp_id_t
	Used to uniquely identify LPs in the simulation.

typedef unsigned	rid_t
	Used to identify in a node the computing resources (threads at the moment)

typedef int	nid_t
	Used to identify MPI nodes in a distributed environment.

Enumerations
enum	rootsim_event { MODEL_INIT = 65532, LP_INIT, LP_FINI, MODEL_FINI, MODEL_INIT = 65532, LP_INIT, LP_FINI, MODEL_FINI }

Functions
void	ProcessEvent (lp_id_t me, simtime_t now, unsigned event_type, const void content, unsigned size, void state)
	The total number of threads running in the node.

void	ProcessEvent_pr (lp_id_t me, simtime_t now, unsigned event_type, const void content, unsigned size, void state)

bool	CanEnd (lp_id_t me, const void *state)

Variables
lp_id_t	n_lps
	The total number of LPs in the simulation.

lp_id_t	n_lps_node
	The total number of LPs hosted in the node.

rid_t	n_threads
	The total number of MPI nodes in the simulation.

__thread rid_t	rid
	The identifier of the thread.

nid_t	n_nodes

nid_t	nid
	The node identifier of the node.

Detailed Description

Core ROOT-Sim functionalities.

Core ROOT-Sim functionalities

Copyright: Copyright (C) 2008-2021 HPDCS Group https://hpdcs.github.io

Definition in file core.h.

Macro Definition Documentation

◆ CACHE_LINE_SIZE

#define CACHE_LINE_SIZE 128

The size of a cpu cache line.

Used to align some data structures in order to avoid false sharing

Definition at line 44 of file core.h.

◆ max

#define max	(	a,
		b
	)

Value:

__extension__({                         \
        __typeof__ (a) _a = (a);        \
        __typeof__ (b) _b = (b);        \
        _a > _b ? _a : _b;              \
})

Definition at line 24 of file core.h.

◆ MAX_NODES

#define MAX_NODES (1 << 16)

The maximum number of supported MPI nodes.

FIXME: this is used very limitedly. Consider its removal

Definition at line 68 of file core.h.

◆ MAX_THREADS

#define MAX_THREADS (1 << 10)

The maximum number of supported threads.

FIXME: this is used very limitedly. Consider its removal

Definition at line 71 of file core.h.

◆ min

#define min	(	a,
		b
	)

Value:

__extension__({                         \
        __typeof__ (a) _a = (a);        \
        __typeof__ (b) _b = (b);        \
        _a < _b ? _a : _b;              \
})

Definition at line 34 of file core.h.
