ROOT-Sim header for model development. More...

#include <limits.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdlib.h>

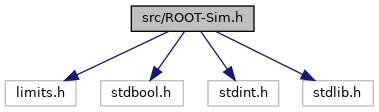

Include dependency graph for ROOT-Sim.h:

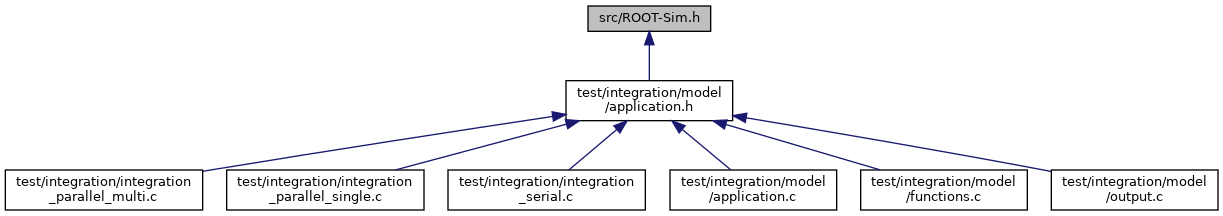

This graph shows which files directly or indirectly include this file:

Data Structures
struct	ap_option
	A single parsable command line option. More...

struct	topology_settings_t
	This is declared by the model to setup the topology module. More...

Typedefs
typedef double	simtime_t

typedef uint64_t	lp_id_t

Enumerations
enum	rootsim_event { MODEL_INIT = 65532, LP_INIT, LP_FINI, MODEL_FINI, MODEL_INIT = 65532, LP_INIT, LP_FINI, MODEL_FINI }

enum	ap_event_key { AP_KEY_INIT = 1 << 14, AP_KEY_FINI, AP_KEY_INIT = 1 << 14, AP_KEY_FINI }

enum	_topology_geometry_t { TOPOLOGY_HEXAGON = 1, TOPOLOGY_SQUARE, TOPOLOGY_RING, TOPOLOGY_BIDRING, TOPOLOGY_TORUS, TOPOLOGY_STAR, TOPOLOGY_MESH, TOPOLOGY_HEXAGON = 1, TOPOLOGY_SQUARE, TOPOLOGY_RING, TOPOLOGY_BIDRING, TOPOLOGY_TORUS, TOPOLOGY_STAR, TOPOLOGY_MESH }

enum	_direction_t { DIRECTION_N, DIRECTION_S, DIRECTION_E, DIRECTION_W, DIRECTION_NE, DIRECTION_SW, DIRECTION_NW, DIRECTION_SE, DIRECTION_INVALID = INT_MAX, DIRECTION_N, DIRECTION_S, DIRECTION_E, DIRECTION_W, DIRECTION_NE, DIRECTION_SW, DIRECTION_NW, DIRECTION_SE, DIRECTION_INVALID = INT_MAX }

Functions
	__attribute ((weak)) extern struct ap_option model_options[]

void	ScheduleNewEvent (lp_id_t receiver, simtime_t timestamp, unsigned event_type, const void *event_content, unsigned event_size)

void	SetState (void *new_state)

double	Random (void)

uint64_t	RandomU64 (void)

double	Expent (double mean)

double	Normal (void)

lp_id_t	RegionsCount (void)

lp_id_t	DirectionsCount (void)

lp_id_t	GetReceiver (lp_id_t from, enum _direction_t direction)

lp_id_t	FindReceiver (void)

Variables
const char *	arg

lp_id_t	n_lps
	The total number of LPs in the simulation.

struct topology_settings_t	topology_settings

Detailed Description

ROOT-Sim header for model development.

This header defines all the symbols which are needed to develop a model to be simulated on top of ROOT-Sim.

This header is the only file which should be included when developing a simulation model. All function prototypes exposed to the application developer are exposed and defined here.

Copyright: Copyright (C) 2008-2021 HPDCS Group https://hpdcs.github.io

Definition in file ROOT-Sim.h.

Enumeration Type Documentation

◆ _direction_t

enum _direction_t

Enumerator
DIRECTION_N	North direction.
DIRECTION_S	South direction.
DIRECTION_E	East direction.
DIRECTION_W	West direction.
DIRECTION_NE	North-east direction.
DIRECTION_SW	South-west direction.
DIRECTION_NW	North-west direction.
DIRECTION_SE	South-east direction.
DIRECTION_INVALID	A generic invalid direction.
DIRECTION_N	North direction.
DIRECTION_S	South direction.
DIRECTION_E	East direction.
DIRECTION_W	West direction.
DIRECTION_NE	North-east direction.
DIRECTION_SW	South-west direction.
DIRECTION_NW	North-west direction.
DIRECTION_SE	South-east direction.
DIRECTION_INVALID	A generic invalid direction.

Definition at line 70 of file ROOT-Sim.h.

◆ _topology_geometry_t

enum _topology_geometry_t

Enumerator
TOPOLOGY_HEXAGON	hexagonal grid topology
TOPOLOGY_SQUARE	square grid topology
TOPOLOGY_RING	a ring shaped topology walkable in a single direction
TOPOLOGY_BIDRING	a ring shaped topology
TOPOLOGY_TORUS	a torus shaped grid topology (a wrapping around square topology)
TOPOLOGY_STAR	a star shaped topology
TOPOLOGY_MESH	an arbitrary shaped topology
TOPOLOGY_HEXAGON	hexagonal grid topology
TOPOLOGY_SQUARE	square grid topology
TOPOLOGY_RING	a ring shaped topology walkable in a single direction
TOPOLOGY_BIDRING	a ring shaped topology
TOPOLOGY_TORUS	a torus shaped grid topology (a wrapping around square topology)
TOPOLOGY_STAR	a star shaped topology
TOPOLOGY_MESH	an arbitrary shaped topology

Definition at line 60 of file ROOT-Sim.h.

◆ ap_event_key

enum ap_event_key

Enumerator
AP_KEY_INIT	Signals the start of the parsing process.
AP_KEY_FINI	Signals the end of the parsing process.

Definition at line 40 of file ROOT-Sim.h.

Function Documentation

◆ Expent()

double Expent ( double mean )

Return a random number according to an Exponential distribution. The mean value of the distribution must be passed as the mean value.

Parameters

mean	Mean value of the distribution

Returns: A random number

Definition at line 61 of file random.c.

◆ Normal()

double Normal ( void )

Return a random number according to a Standard Normal Distribution

Returns: A random number

Definition at line 74 of file random.c.
