MPI Support Module. More...
#include <lp/msg.h>

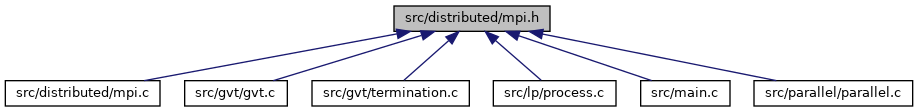

Include dependency graph for mpi.h: This graph shows which files directly or indirectly include this file:Go to the source code of this file.
Enumerations | |
| enum | msg_ctrl_tag { MSG_CTRL_GVT_START = 1, MSG_CTRL_GVT_DONE, MSG_CTRL_TERMINATION } |
| A control message MPI tag value. More... | |
Functions | |
| void | mpi_global_init (int *argc_p, char ***argv_p) |
| Initializes the MPI environment. More... | |
| void | mpi_global_fini (void) |
| Finalizes the MPI environment. | |
| void | mpi_remote_msg_send (struct lp_msg *msg, nid_t dest_nid) |
| Sends a model message to a LP residing on another node. More... | |
| void | mpi_remote_anti_msg_send (struct lp_msg *msg, nid_t dest_nid) |
| Sends a model anti-message to a LP residing on another node. More... | |
| void | mpi_control_msg_broadcast (enum msg_ctrl_tag ctrl) |
| Sends a platform control message to all the other nodes. More... | |
| void | mpi_control_msg_send_to (enum msg_ctrl_tag ctrl, nid_t dest) |
| Sends a platform control message to a specific nodes. More... | |
| void | mpi_remote_msg_handle (void) |
| Empties the queue of incoming MPI messages, doing the right thing for each one of them. More... | |
| void | mpi_reduce_sum_scatter (const unsigned node_vals[n_nodes], unsigned *result) |
| Computes the sum-reduction-scatter operation across all nodes. More... | |
| bool | mpi_reduce_sum_scatter_done (void) |
| Checks if a previous mpi_reduce_sum_scatter() operation has completed. More... | |
| void | mpi_reduce_min (simtime_t *node_min_p) |
| Computes the min-reduction operation across all nodes. More... | |
| bool | mpi_reduce_min_done (void) |
| Checks if a previous mpi_reduce_min() operation has completed. More... | |
| void | mpi_node_barrier (void) |
| A node barrier. | |
| void | mpi_blocking_data_send (const void *data, int data_size, nid_t dest) |
| Sends a byte buffer to another node. More... | |
| void * | mpi_blocking_data_rcv (int *data_size_p, nid_t src) |
| Receives a byte buffer from another node. More... | |
MPI Support Module.
This module implements all basic MPI facilities to let the distributed execution of a simulation model take place consistently.
Several facilities are thread-safe, others are not. Check carefully which of these can be used by worker threads without coordination when relying on this module.
Definition in file mpi.h.
| enum msg_ctrl_tag |
| void* mpi_blocking_data_rcv | ( | int * | data_size_p, |
| nid_t | src | ||
| ) |
Receives a byte buffer from another node.
| data_size_p | where to write the size of the received data |
| src | the id of the sender node |
This operation blocks the execution flow until the sender node actually sends the data with mpi_raw_data_blocking_send().
| void mpi_blocking_data_send | ( | const void * | data, |
| int | data_size, | ||
| nid_t | dest | ||
| ) |
Sends a byte buffer to another node.
| data | a pointer to the buffer to send |
| data_size | the buffer size |
| dest | the id of the destination node |
This operation blocks the execution flow until the destination node receives the data with mpi_raw_data_blocking_rcv().
| void mpi_control_msg_broadcast | ( | enum msg_ctrl_tag | ctrl | ) |
| void mpi_control_msg_send_to | ( | enum msg_ctrl_tag | ctrl, |
| nid_t | dest | ||
| ) |
| void mpi_global_init | ( | int * | argc_p, |
| char *** | argv_p | ||
| ) |
| void mpi_reduce_min | ( | simtime_t * | node_min_p | ) |
Computes the min-reduction operation across all nodes.
| node_min_p | a pointer to the value from the calling node which will also be used to store the computed minimum. |
Each node supplies a single simtime_t value. The minimum of all these values is computed and stored in node_min_p itself. It is expected that only a single thread calls this function at a time. Each node has to call this function else the result can't be computed. It is possible to have a single mpi_reduce_min() operation pending at a time. Both arguments must point to valid memory regions until mpi_reduce_min_done() returns true.
| bool mpi_reduce_min_done | ( | void | ) |
Checks if a previous mpi_reduce_min() operation has completed.
| void mpi_reduce_sum_scatter | ( | const unsigned | node_vals[n_nodes], |
| unsigned * | result | ||
| ) |
Computes the sum-reduction-scatter operation across all nodes.
| node_vals | a pointer to the addendum vector from the calling node. |
| result | a pointer where the nid-th component of the sum will be stored. |
Each node supplies a n_nodes components vector. The sum of all these vector is computed and the nid-th component of this vector is stored in result. It is expected that only a single thread calls this function at a time. Each node has to call this function else the result can't be computed. It is possible to have a single mpi_reduce_sum_scatter() operation pending at a time. Both arguments must point to valid memory regions until mpi_reduce_sum_scatter_done() returns true.
| bool mpi_reduce_sum_scatter_done | ( | void | ) |
Checks if a previous mpi_reduce_sum_scatter() operation has completed.
Sends a model anti-message to a LP residing on another node.
| msg | the message to rollback |
| dest_nid | the id of the node where the targeted LP resides |
This function also calls the relevant handlers in order to keep, for example, the non blocking gvt algorithm running. Note that when this function returns, the anti-message may have not been sent yet. We don't need to actively check for sending completion: the platform, during the fossil collection, leverages the gvt to make sure the message has been indeed sent and processed before freeing it.
| void mpi_remote_msg_handle | ( | void | ) |
Empties the queue of incoming MPI messages, doing the right thing for each one of them.
This routine checks, using the MPI probing mechanism, for new remote messages and it handles them accordingly. Control messages are handled by the respective platform handler. Simulation messages are unpacked and put in the queue. Anti-messages are matched and accordingly processed by the message map.
Sends a model message to a LP residing on another node.
| msg | the message to send |
| dest_nid | the id of the node where the targeted LP resides |
This function also calls the relevant handlers in order to keep, for example, the non blocking gvt algorithm running. Note that when this function returns, the message may have not been actually sent. We don't need to actively check for sending completion: the platform, during the fossil collection, leverages the gvt to make sure the message has been indeed sent and processed before freeing it.
